Single Phase Smart Electricity Meter L
Single Phase Smart Electricity Meter L
The intelligent multi-tariff single phase electronic meter is designed for use in smart electricity metering systems with remote collection of readings.
The embedded IoT communication module allows utilities to receive information automatically about active and reactive energy, generation and consumption, voltage quality, tampering incidents, magnet exposure and etc. via radio (RF434 or RF868) LPWAN, GSM or RS-485 technology.
The counter withstands magnetic fields of 500 mlT, and also records the date and time of exposure.
The meter will promptly transmit to the dispatcher information about the facts of opening the terminal cover or case, exposure to a magnet, electrical disturbance, attempts to handle an incorrect password, deviation of network parameters, overheating, etc.
Allows you to remotely disable defaulters. Relay triggering is configured depending on certain events.
Electricity consumption and other indicators recorded by the meter can be monitored remotely in your personal account in any place where there is Internet.
In addition to metering the current in the forward and reverse directions, the meter monitors and displays the network parameters, generation and consumption.
In the event of a power outage, data will not be lost thanks to non-volatile memory. And the operation of the calendar and display is provided by a built-in battery with a long service life.
- Accuracy class for active and reactive energy 1;
- Communication interfaces: Radio (RF434 or RF868), LTE/GPRS, RS-485;
- Data transfer protocol: Smart Meter Protocol;
- Circuit and network parameters measurement;
- Built-in relay for remote power control;
- Sensors detecting tampering with the housing cover and the terminal block clipses;
- Resistance to magnetic fields up to 500 mlT, date and exposure time recording;
- Alert messages about unauthorize interventions or power failure;
- Multifunctional LCD with backlight;
- It can be mounted on a DIN-rail.
Functionality of single phase digital energy meter:
- Recording and storage of measuring data when changing:
- days - 128;
- months or billing periods - 40;
- years - 10. - Power control zones;
- Ability to set the date of the billing period;
- Automatic winter / summer changeover;
- Registration and storage of load profiles by 6144 values with an interval of power integration of 1, 3, 5, 10, 15, 60 minutes;
- Control and display of voltage quality parameters;
- Low consumption control;
- Current difference control;
- Temperature control inside the meter;
- Registration and indication of the date and time of exposure to magnetic and electromagnetic fields;
- Data presented in the form of OBIS codes (EN 625056-61).
|
Communication interfaces
|
OPTOPORT+Radio OPTOPORT+RS-485 OPTOPORT+GSM |
|
Accuracy class
|
1/1 |
|
Rated voltage
|
230V |
|
Rated frequency of the AC network
|
50 Hz |
|
Base (maximum)
|
5 (60) A 5 (80) A 5 (100) A |
|
Starting current
|
10 mA |
|
Total power consumption
|
- through the current circuit: not more than 0.3 V·A - through the voltage circuit: not more than 10 V·A |
|
Active power consumption
|
not more than 2 watts |
|
The speed of exchange through the optical port
|
from 300 to 9600 bits/s |
|
Maximum number of tariffs
|
8 |
|
Data retention time
|
at least 30 |
|
Initial launch time
|
no more than 5 |
|
Operating conditions
|
- ambient temperature: from -40 to +70 °C - relative humidity: from 30 to 95 % |
|
Normal measurement conditions
|
- ambient temperature: from +20 to +30 °C - relative humidity: from 30 to 80 % |
|
The verification interval
|
16 years |
|
Average service life
|
30 years |
|
Average downtime
|
320000 hours |
|
Operating temperature range
|
from -40 to + 70 ° С |
|
Degree of protection of the housing
|
IР51 |
|
Overall dimensions
|
153 х 116 х 48,5 mm |

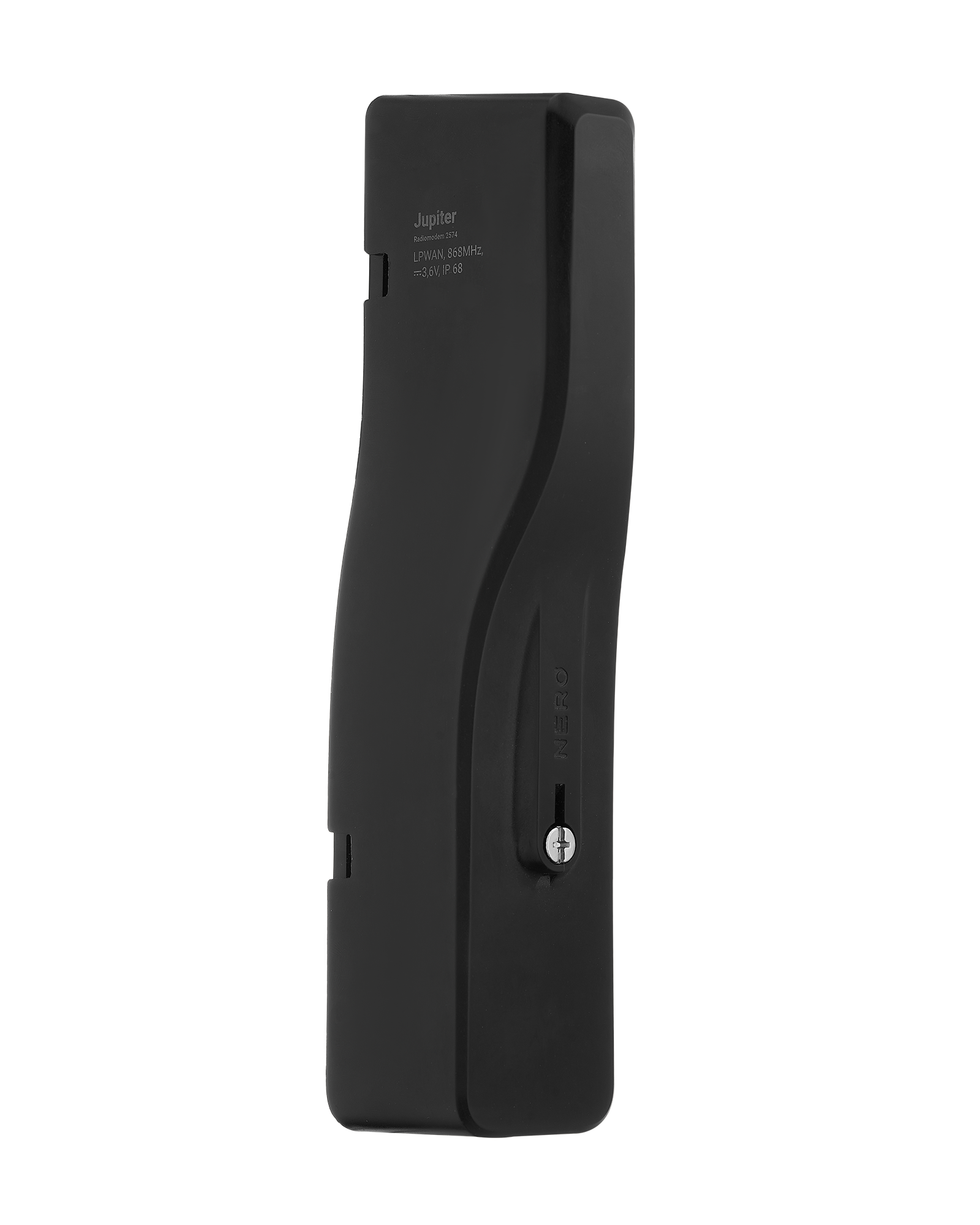

One data collection and transmission device supports up to 700 meters without concentrators and repeaters.
