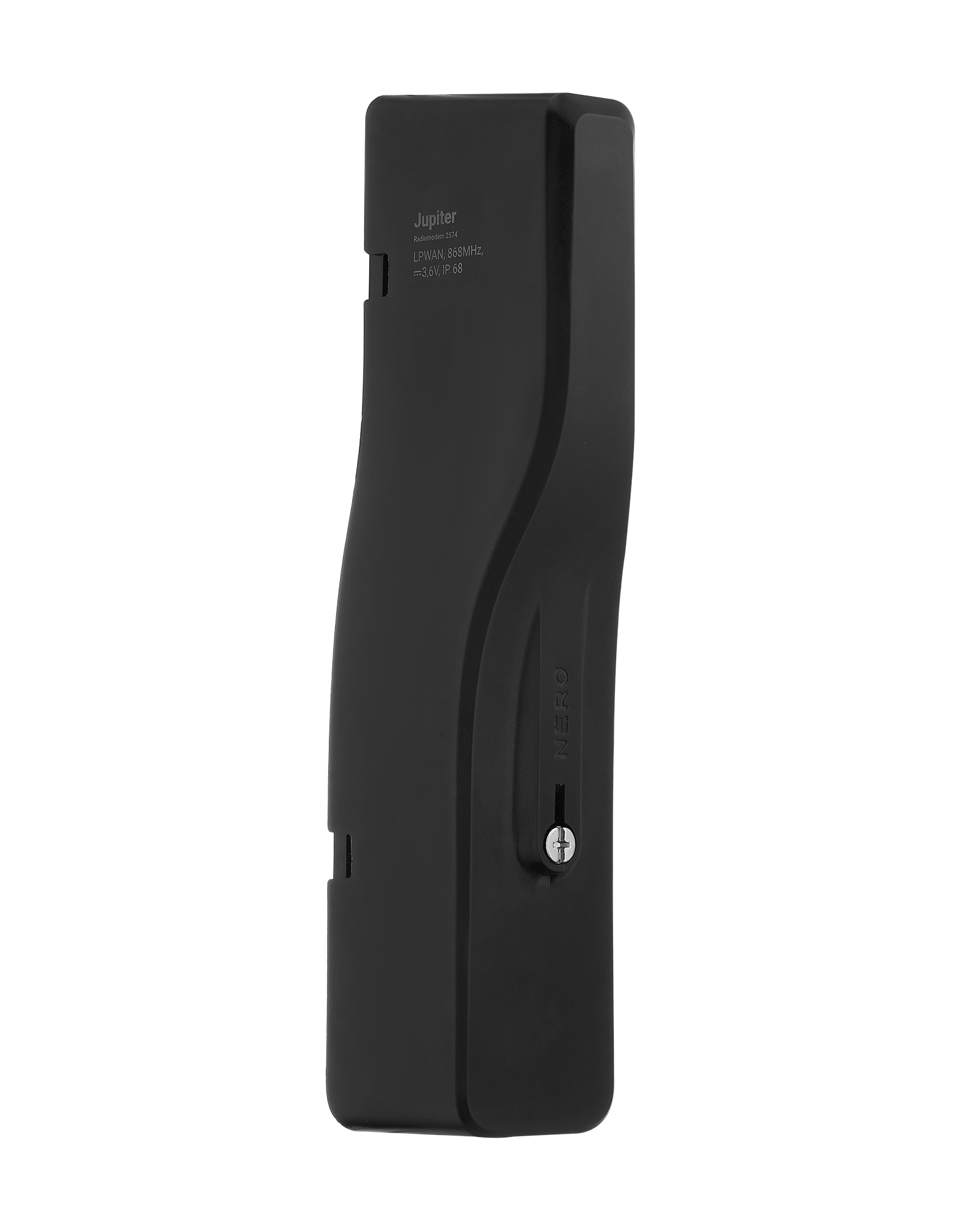

Radio Modem JUPITER
Radio Modem JUPITER
Radio modem is used to allow the remote monitoring of the consumed resources in case they are measured by traditional meters without IoT capabilities.
The data is transmitted by the modem to the utility servers using one of the popular LPWAN technologies: SigFox, LoraWAN, NB-IoT, NB-Fi, Nero UNB.
The data will not be lost: channel-bychannel accumulation (saving once a day) and storage of data archives for a period of up to 6 years is carried out.
It can be placed in humid and hard-to-reach rooms due to autonomous battery power supply and the increased enclosure protection against moisture and dust IP68.
The ability to set an arbitrary frequency plan depending on the requirements in the country of use. Sensitivity meets international standards for tenders: up to -138dBm.
Reads and transfers to the user's personal account readings from different meters: water, heat, gas, electricity - by any manufacturer.
UPITER radio modem is an important element of smart metering system. It transmits the readings of metering devices to the system middle level (base station or the device of information collection and transfer), and then to the personal user accounts and to the server of resource-supplying organizations.
Nero Electronics radio modem has the following advantages:
- Reads and transmits data from any device with pulse outputs: water, heat, gas, electricity meters;
- Has two pulse inputs for connection to two metering devices;
- Conducts channel-by-channel accumulation and storage of data archives for a period of up to 6 years with saving once a day;
- In a personal account, one can control not only the readings, but also the charge level of the built-in battery, as well as the operating temperature of the radio modem;
- High IP68 enclosure protection;
- Long service life of a built-in lithium battery;
Communication technologies available:
SigFox, LoRaWAN, NB-IoT, NB-Fi, Nero UNB.
|
Pulse inputs
|
2 |
|
Sensitivity
|
up to -138 dBm |
|
Frequency range
|
863 - 870 MHz |
|
Data transmission power
|
up to 25 mW |
|
Frequency of sending data
|
configurable at manufacture: once an hour every 3 hours every 6 hours every 12 hours every 24 hours |
|
Data encryption
|
there is |
|
Battery
|
battery 3 V |
|
Battery life
|
10 years 7 years on NB-IoT |
|
Antenna type
|
internal |
