Smart Ultrasonic Gas Meter METANO
Smart Ultrasonic Gas Meter METANO
Electronic gas meter is based on an innovative ultrasonic technology. Thanks to it gas meter is compact and extremely precise. It immediately responds to flow changes and provides no pressure loss. The meter ensures stable measurement reliability over time and a long service life.
The readings are saved in a non-volatile meter memory and then the embedded communication module sends all the data to a utility platform using one of the popular LPWAN technologies: SigFox, LoraWAN, NB-IoT, NB-Fi, Nero UNB.
The main advantages of the technology are accurate measurements of low flow rates, as well as resistance to mechanical wear due to the absence of moving parts.
Automatic adjustment to standard conditions by temperature correction function enables the meter's installation outdoors or in unheated rooms.

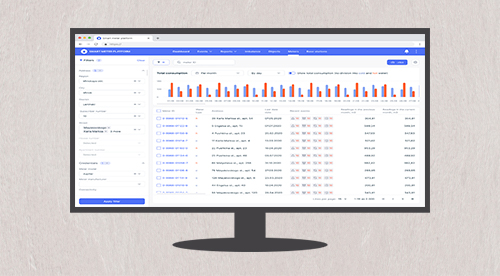

Convenient personal account for analysis and statistics. The ability to export data to Excel and other software.
The communication module inside the meter transmits data to the personal account, providing remote collection of readings.
The meter will with stand the influence of the magnetic fields and signal about the incident by indication on the screen and in a personal account of a gas supplier.
Unlike a tachometer, ultrasonic meter is less sensitive to deposits on the flow path, which allows it to provide a long period of accurate and failure-free service.
METANO smart meter is a reliable device, which can significantly simplify and fully automate gas consumption metering.
Features:
|
Relative error, no more than %
|
±1,5 |
|
Temperature regime
|
from -40 to +55°С |
|
Sensitivity threshold
|
0,004 Qmax |
|
Counting mechanism capacity
|
99999,999 m3 |
|
Thread on connecting pipes
|
G1/2 inch G3/4 inch |
|
Frequency range
|
from 863 to 870 MHz |
|
Data transmission power
|
25 mW |
|
Data encryption
|
there is |
|
Power supply voltage
|
3.6 V |
Maintenance free, which reduces operating costs.
• System of built-in control and diagnostics.
• Temperature correction.
• Pressure correction.
• Three modes of operation: operation, verification and service.
