Hot Water Smart Meter FLUO
Hot Water Smart Meter FLUO
FLUO electronic vane water meter with built-in radio LPWAN module and autonomous power supply is designed for automatic wireless metering of hot water in residential buildings, cottage settlements, and at enterprises.
The built-in radio module enables data transfer to the personal accounts of a utility and other users.

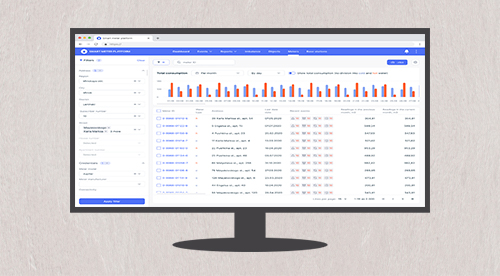

Consumption statistics in a visual form can be available not only to management companies, homeowners associations, resource organizations, but also to consumers.
The meter can be used both in complex accounting systems and as an independent device.
The embedded communication module of the required technology transmits data to the personal account, providing remote collection of readings.

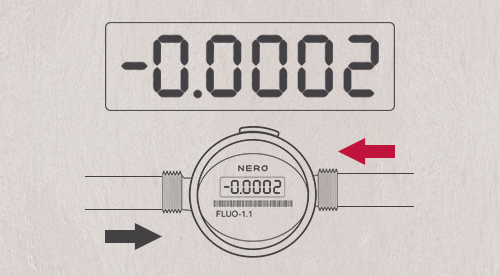

In the event of a reverse flow, the data is not subtracted from the main readings, but is counted in a separate register and displayed on the screen.
Both vertical and horizontal installation is possible. Electronic head with indicator, rotating 360 °.
The meter will withstand the influence of the magnetic field and will signal an attempt to influence the indication on the screen and in the personal account of the managing organization.
Counter features:- Up to R160 - wide measurement range;
- When a reverse flow occurs, the data is not subtracted from the main readings, but is counted in a separate register and displayed on the screen;
- Equipped with an electronic head with indicator rotating 360 °;
- High IP67 enclosure protection;
Communication technologies available:
SigFox, LoRaWAN, NB-IoT, NB-Fi, Nero UNB.
The meters have modifications that differ in the constant flow rate, flow range (R), overall dimensions and weight:
- FLUO-1.1 (Q3 = 1.6 m3/h)
- FLUO-1.1 (Q3 = 2.5 m3/h)
- FLUO-1.2 (Q3 = 1.6 m3/h).
The characteristics of each modification are shown in the table.
|
Weight
|
up to 0.45 kg |
|
Connection diameter
|
DN15 |
|
Temperature regime
|
from 0,1 to + 70° С |
|
Metrological class of accuracy
|
2 |
|
Frequency range
|
from 863 to 870 MHz |
|
Data transmission power
|
up to 25 mW |
|
Data encryption
|
+ |
|
Frequency of sending data
|
once a day with standard factory setting |
Installation of a FLUO smart meter is no different from the installation process of a regular meter. No additional setup, calibration or special knowledge required.
Allows you to completely refuse to take readings manually.
